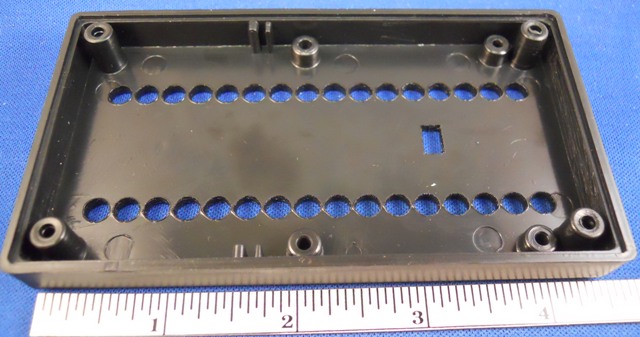

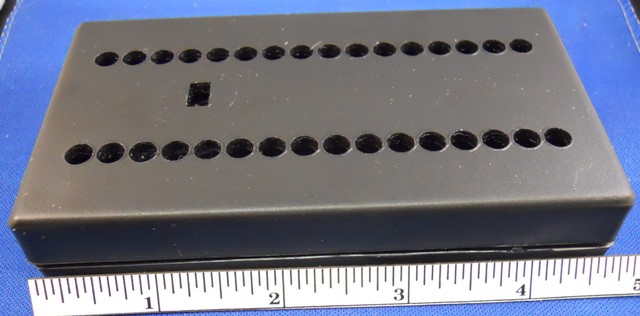

Laser Cut plastic enclosure for the 5mm LED BK-232 Kit. (3mm LED enclosure can be special ordered, contact us for details). Enclosure is black and measures 2.5" x 4.6" x .90" thick. 32 laser cut holes that match up with the 32 holes on the BK-232 Circuit Board. Also included is a laser cut slot to match up with the speed & function button on the BK-232 circuit board. A round stick on flexible button cover is supplied to go over the slot and allow the user to puch the button to change speed or functions. Case is made in two halves, Front with the holes and a solid back. The finished unit is held together with 4 small screws (supplied).

The BK-232 should be assembled with the LEDs and Button on the backside of the BK-232 circuit board to allow assembly into the enclosure. As we do not supply power wires, the user must add a hole or groove for the power wires they intend to use to power the unit from an external source such as a battery or power supply.

Note: Assembly of the BK-232 into the case is not included with the assembly of the BK-232 Circuit.

Optional, we can custom Laser Engrave the enclosure to add company name or part number. Contact us for any special requests.
