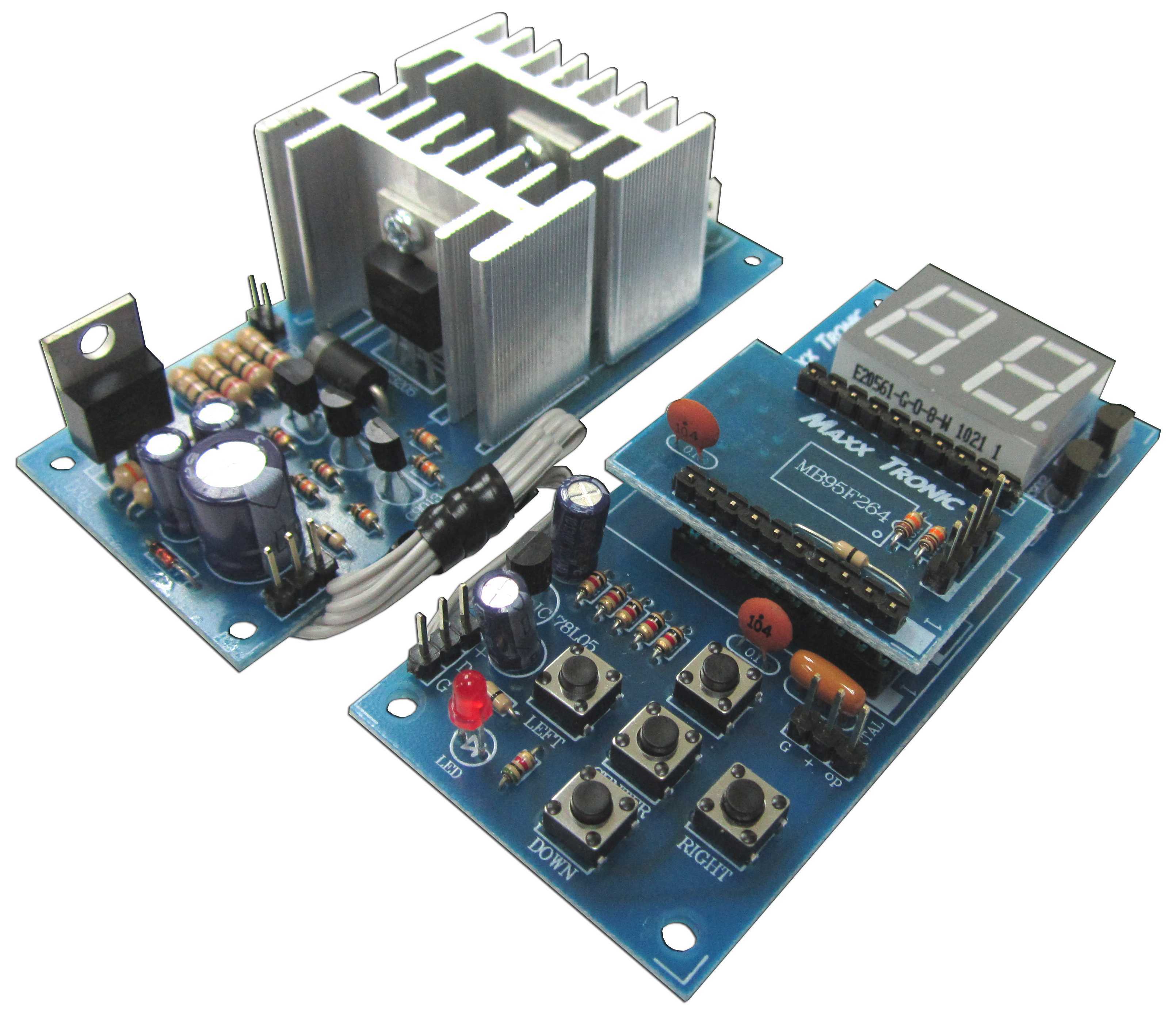

The MXA087 offers the same feature as MXA067 but with digital control for easy application and with 3 levels of speed recording for better performances. There is the mosfet driver that greatly increases working efficiency of the circuit. In addition, it tolerates to an ambiant signal and with one second built-in soft start.
Detail:
- Power supply : 12/24VDC.
- Load voltage : 12/24VDC. / 30A. max.
- Motor speed : Using PWM (Pulse With Modulation) principle for motor speed control.
- Speed recording level : 3 levels.
- One second built-in soft start.
- Adjustable frequency range : 100Hz, 500Hz, 1kHz, 2kHz, 4kHz and 8kHz.
- PWM duty cycle : adjustable from 0% to 100%
- PCB dimensions : 3.43 x 1.54 in.
