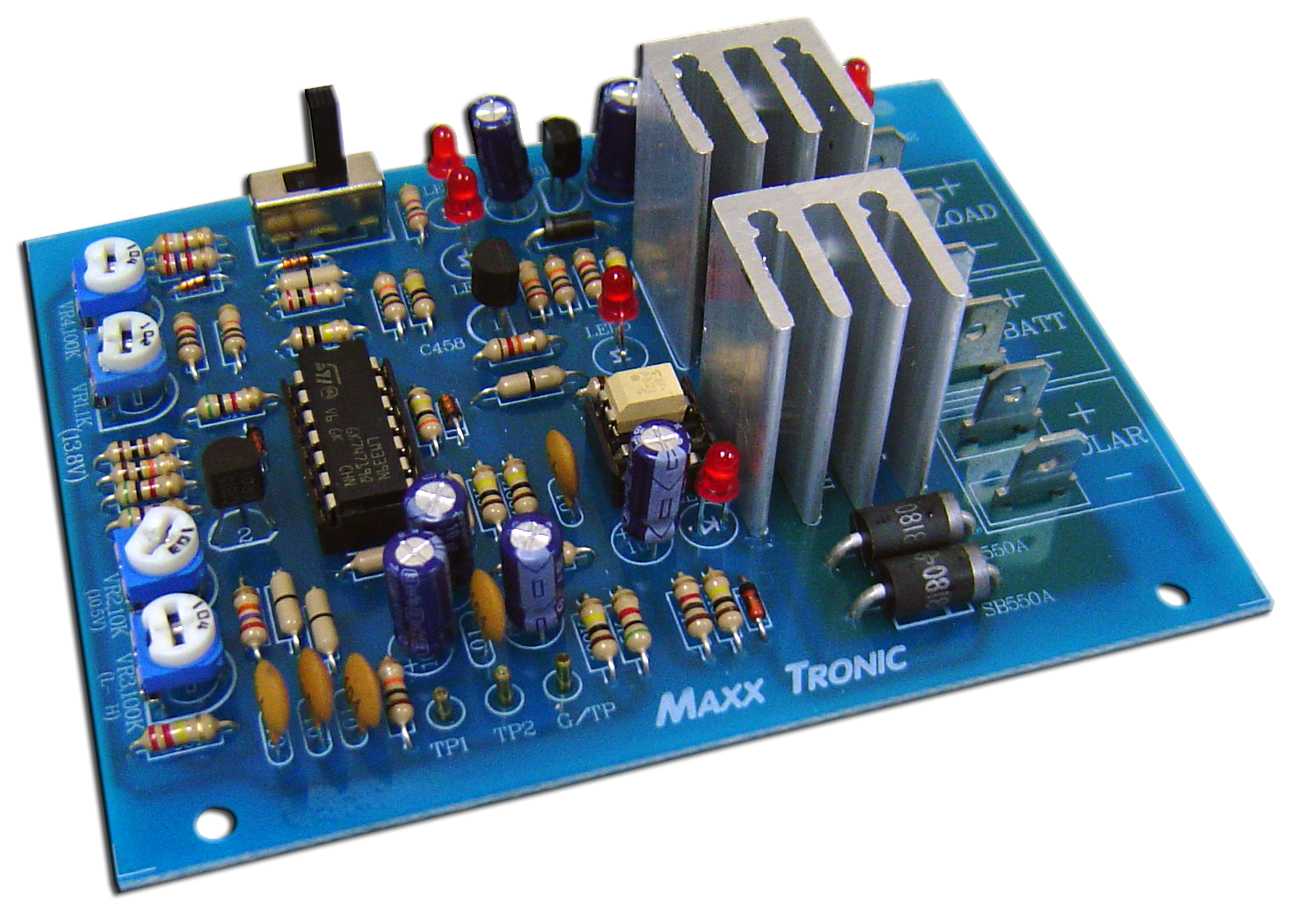

This solar charge controller is suitable for using with DC electrical appliances such as bulb, radio, fan, television, etc. where there is not access by
electricity or need energy conservation. It regulates the voltage and current coming from the solar panels going to the battery. Maintain peak battery power and protect battery from overcharged and over-discharged to increase battery service life.
FEATURES:
- Battery require : 12V.
- Solar Panel required : 16-22V. 5-60W. (Solar panel not included with controller)
- Max. working current : 5 Amp.
- Max. load current : 5 Amp.
- Auto charge and cut-off power when battery is full or low.- Cut off the circuit operation when battery voltage is less than 10.5V., and
reconnect when the voltage rise up to 12V.
- PCB dimensions : 3.98x3.00 in.
