Item #:
Supply as Kit or Assembled
Your Price:

Kit not available at this time, only the Factory assembled version!!!

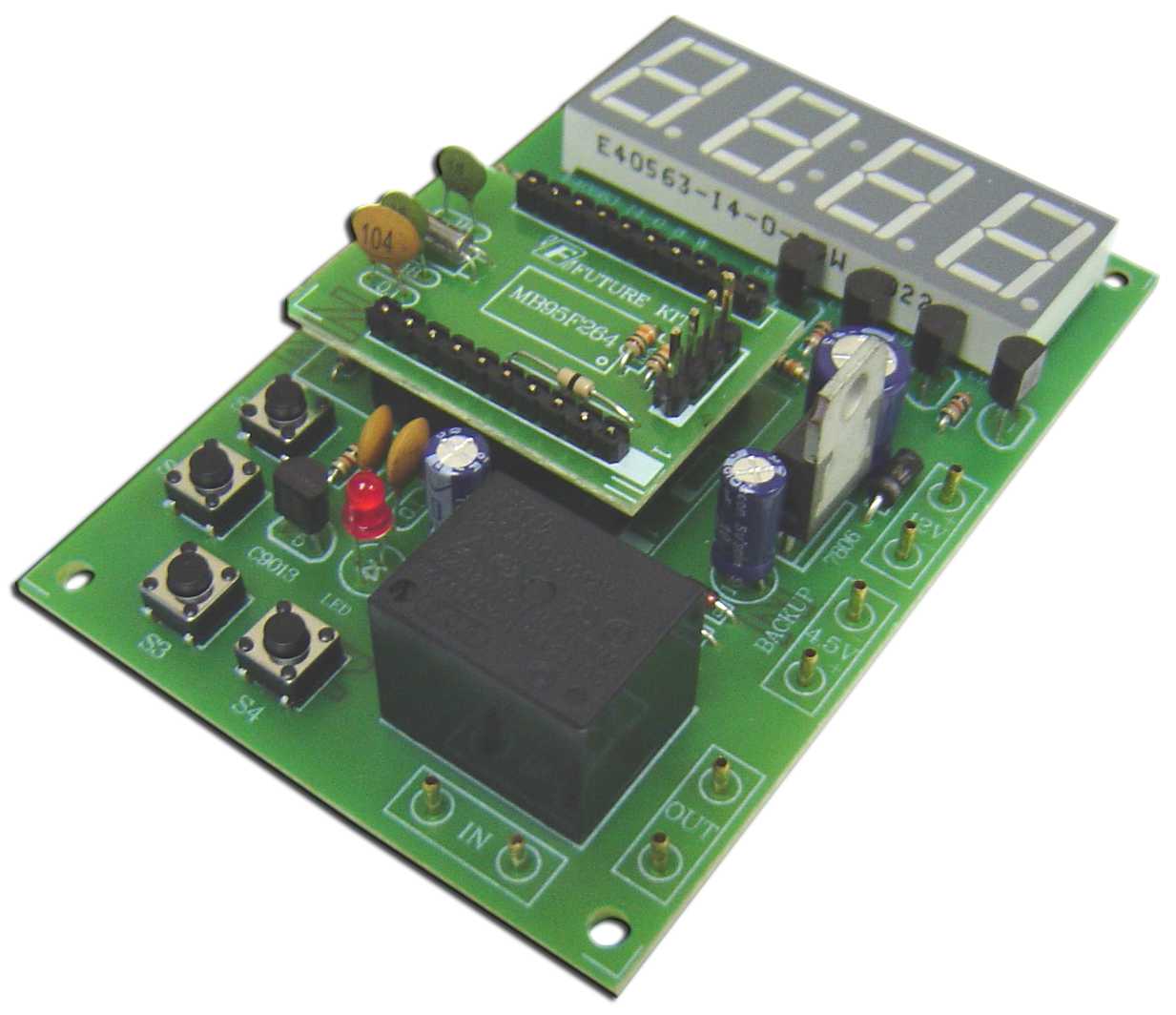

This circuit is used to show the current time and on-off timer. This circuit uses IC FUJISU MB95F264 which is a new IC generation, small size, and provides memory up to 20 kilobytes. In addition, to apply with other application, you can re-program an IC.

Technical Specifications:
- Power supply : 12VDC. 90mA. max.
- Display in 24-hour format.
- There are two display formats; Hour:Minute or Minute:Second operation.
- Can be set 20 programs maximum for on-off timing.
- There is a connecting point with FUJISU programmer MB2146-08-E
- PCB dimensions : 2.35 x 3.57 in.

Kit requires assembly by soldering, but can be purchased assembled as an option!
