BK-202 Ultimate Welder Kit
Item #:
BK-202
Price/ea:
$39.99
Optional Items
Quantity:
Your Price:
$39.99
Details

The Ulitmate Welder Kit with Sound, Pausing, Sparks and Glowing Iron effects.

The Ulitmate in Simulated Welding Kits!! A Micro processor controlled special effects of sounds, sparks, pausing and glowing iron in weld puddle. When power is applied the micro controller starts a welding sequence that flashes a bright while LED to simulate welding flashes. As the welder flashes, additional red, orange and amber LEDs flash to simulate sparks coming from the welding. The sparks are distributed in the scene by the included .030" diameter fiber optic cable. A crackle sound is also produced thru the included small speaker as the welder continues to flash.  After a period of time the welding stops, like when the electode is pulled away from the molten pool of weld metal. While the welding is going on, the micro controller slowy increases the brightness of the Orange LED to simulate the metal getting hotter. When the welding stops, the Orange LED is at its brightest and then slowly fades in color simulating a cool down of the material. The Micro controller then pauses the action for a while, then repeats the process. The welding varies in length during operation to make it more realistic. The perfect addition to any welding scene, factory, contruction site, gas station or any type of repair scene. An optional FK602 amplifier kit is also available if you need more volume (large room or noisy enviroment)

Kit requires assembly, but can be purchased assembled and tested as an option.

Features:

Small Compact Circuit
MicroComputer IC controlled with Welding Program Installed
Simulated Welding with Pausing
Glowing Amber LED to simulated glowing iron cooling down after welding stops.
Red, Orange and Amber LEDs to make sparks during welding
3' of .040" dia Fiber Optic cable to distribute sparks around the welding area
IC can be reprogrammed or changed to run additional programs
High Quality Circuit Board
Voltage Regulator include in circuit
IC Socket to easily change MicroComputer Chip
7" Leads for LEDs and Power Input
Reverse Polarity Protected Circuit
Circuit is expandable as new options become available
Custom Programs can be added
White, Red, Orange & Amber 3mm Super Bright LEDs included
A small Speaker for sound is included

Options:

Assembly of basic unit by Bakatronics
5mm White LED
Plastic Enclosures
Custom welding rates & Sequences
Other Color LEDs
9 Volt Battery Clip
On Off Switch
HO & N Scale Welding Figures & Equipment
Amplifier kit (FA602) for louder sound in noisey places (requires a larger speaker)

The completed circuit board is 1" wide, 2 3/8" long and about 1/2" high.

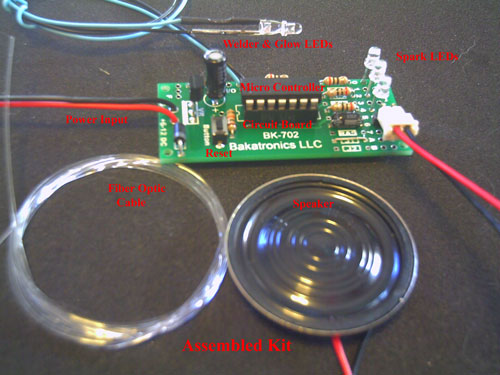

The kit comes complete with Circuit Board, Components, 5 Super Bright  3mm LEDs (1 white, 1 amber, 1 red, 2 orange ) a Pre-Programmed MicroController IC, 7" LED and Power leads and Assembly Instructions. This kit requires soldering to assemble the kit. A 15-30 watt soldering iron is recommended.
