BK-106 Buoy Flasher kit New for 2016
Item #:
BK-106
Price/ea:
$19.99
Average Rating:
Assembly Options
Optional Items
Quantity:
Your Price:
$19.99
Details

Buoy Beacon Flasher Kit

Here is a great kit to bring a Harbor scene to life. The kit includes a preprogrammed MicroComputer with sequences that simulate five actual USCG Lighted Buoy Flashing Patterns. Five LED Buoys can be operated from this one kit. Light patterns & Colors are an integral part of the U.S. Aid to Navigation System that allow for nightime identification of harbor features. This helps Boating traffic identify their position in a waterway by the flashing pattern and color of the buoy(s) on their chart. The kit allows for up to 5 LEDs to be operated at the same time, each flashing a unique pattern!

U.S. Aid to Navigation Patterns Included:

Output 1= Occulting Flashing on and off where the on time exceeds the off time
Output 2= Fl-2 Two Flashes and a pause and then repeat
Output 3= FL 2+1 Two Flashes pause and then third Flash, pause and repeat
Output 4= Isophase Flash on and Off where on and off times are equal lengths
Output 5= Quick Flashing Q

Unit can be used with any or all of the above patterns at one time to flash individual LEDs on each output.

Great for HO and N Buoys Beacons. Assembly is fairly simple due to the small number of parts.

Don't have room  on your layout! You can always make a backdrop showing a small Buoy in the distance with the LED mounted in the backdrop for a great effect

Kit requires assembly, but can be purchased assembled and tested as an option.

Basic Component Assembly Video for BK-100 thru BK-115 kits

https://youtu.be/xZ8FLdnw8QU

Final assembly video for BK-106 coming soon!

Features:

Small Compact Circuit fits inside most HO & N Scale buildings
MicroComputer IC with Buoy Program for 5 LEDs Installed
IC can be reprogrammed or replaced to run additional programs
High Quality Circuit Board
Voltage Regulator include in circuit
IC Socket to easily change MicroComputer Chip
Leads for LED and Power Input
Reverse Polarity Protected Circuit
Circuit is expandable as options become available
Custom Programs can be added

Options:

Assembly by Bakatronics
2mm LEDs
5mm LEDs
Other Color LEDs
9 Volt Battery Clip
On Off Switch
Custom Patterns

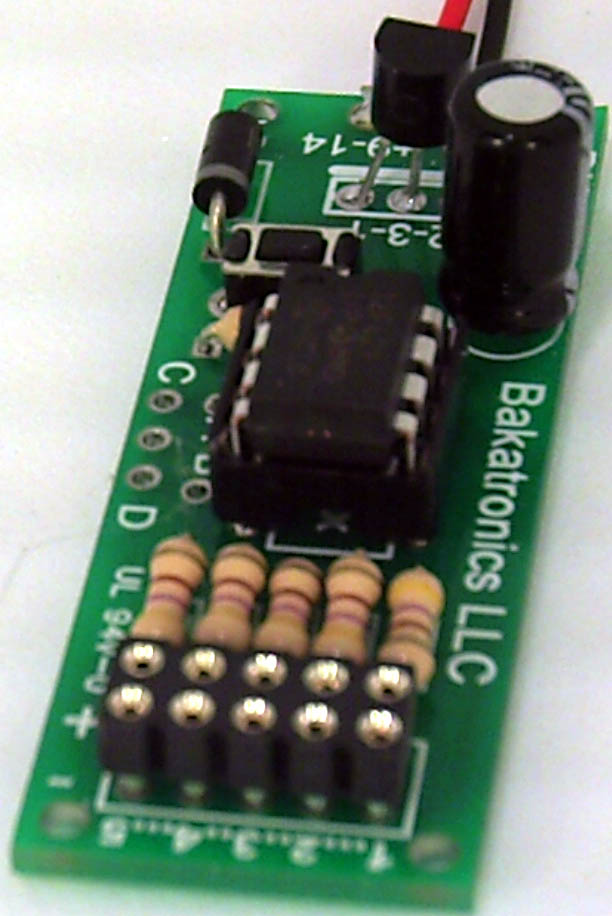

The completed circuit board is 3/4" wide, 2" long and about 1/2" high.

The kit comes complete with Circuit Board, Components,
 Five 3mm LEDs (3 Red & 2 Green), a Pre-Programmed MicroController IC,
 LED and Power leads and Assembly Instructions.
This kit requires soldering to assemble the kit. A 15-30 watt soldering iron is recommended.
