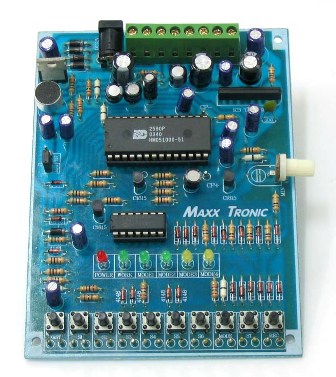

MXA023 6Ch Digital Sound Recorder
Item #:

MX023: 6 Channel DIGITAL VOICE RECORD / PLAYBACK (90 seconds).

Replaced by MX075

- PCB dimension : 4.82 x 3.61  inch.
- Recommended Housing : FB05
- Power supply:7-12 Vdc./min.15mA and max.150mA. at 12 Vdc.
- Time record duration of 90 seconds.
- Audio power amplifier build-in. Output power 720mW,
- Select record signal from MIC or LINE IN.
- Six separate record / playback channels (programmable)
- 100-year message retention(no battery backup and
power supply).
- 100,000 record cycles (typical).
