BK-101 Emergency Vehicle Flasher
Item #:
Average Rating:
Assembly Options
Optional Items
Your Price:

Emergency Vehicle Flasher / Strobe Light Kit, (requires assembly, but can be purchased assembled as an option).

Updated for 2009 with more LEDs and additional patterns & features

Here is a great kit to bring Emergency Vehicles to "Life" Use on Police, Fire, Contruction, Ambulance, school Buses and Highway Maintenance Vehicles. LEDs can be wired to board with 12" long leads provided with kit to allow the LEDs to be mounted into vechicles. You can also use Fiber Optic Cable to put emercency lights in HO, N and Z vehicles. (See Bakatronics Fiber Optic kit and extra cable sizes)

Video link http://www.youtube.com/watch?v=cgv3xpAUuHQ

Basic Component Assembly Video for BK-100 thru BK-115 kits


Final assembly video coming soon!


Small Compact Circuit
MicroComputer IC controlled with 5 Emergency Light Programs Installed (see modes below)
IC can be reprogrammed or changed to run additional programs
High Quality Circuit Board
Voltage Regulator include in circuit
IC Socket to easily change MicroComputer Chip
12" Leads for LEDs
Reverse Polarity Protected Circuit
Circuit is expandable as new options become available
Custom Programs can be added
4 Red 3mm Super Bright LEDs included

Selectable Modes:


1: Emergency Flasher 1. Rapidly Strobes 2 LEDs 4 times then the other 2 LEDs 4 times. Great for Police, Fire Ambulance, Etc


2: Emergency Flasher 2. Rapidly Strobes 2 LEDs 3 times then the others. Police, Ambulance, Fire, etc


3: Alternating Flasher. Slow flashes two LEDs then the other two LEDs. RR crossings, Police car headlights, barriers etc.


4: Flashes LEDs 1 and 4 on and off at the same time. Then LEDs 2 & 3 strobe rapidly between Flashes.  Great for Highway Equipment where the LEDs are used as tail lights. Construction, Refuse trucks, Mail Trucks, etc.


5: Rapid back and forth Chasing of 4 LEDs


6:Run all patterns

in sequence and repeat


Circuit program also has a built in delay between sequences that can be activated with a switch or jumper wire.


Assembly by Bakatronics (LEDs supplied loose so customer may install in scene or vehicle)
LEDs in different colors & sizes
Plastic Enclosures
Custom Flashing rates & Sequences
Other Color LEDs
9 Volt Battery Clip
On Off Switch

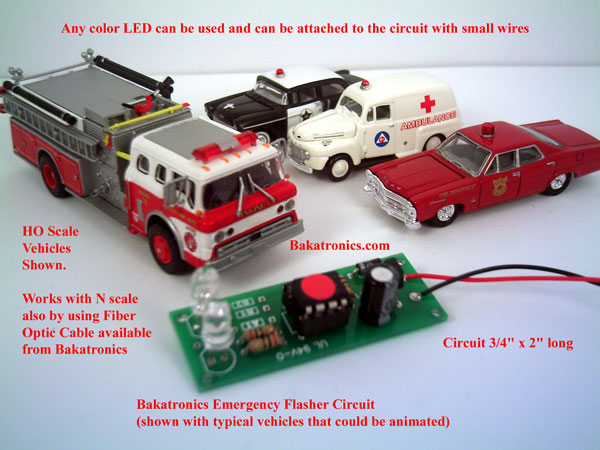

The completed circuit board is 3/4" wide, 2" long and about 1/2" high.

The kit comes complete with Circuit Board, Components, 4 Super Bright  3mm Red LEDs a Pre-Programmed MicroController IC, 12" LED and Power leads and Assembly Instructions. This kit requires soldering to assemble the kit. A 15-30 watt soldering iron is recommended.
