MX034 3" Seven Segment Display
Item #:
MX034
Price/ea:
$9.99  $4.99
Quantity:
Details

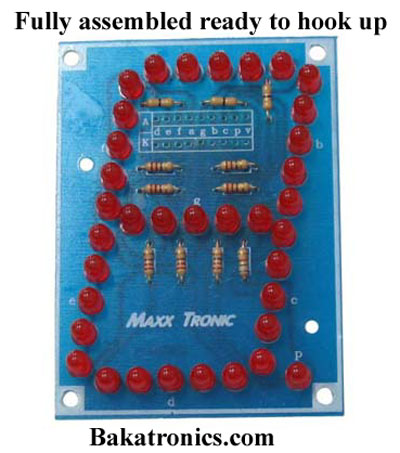

MX034: SEVEN SEGMENT DISPLAY 3” (Standard LEDs)

9 in stock

Detail:
-Display dimensions : 46x75 mm. or 1.78x3 inch.
-PCB dimensions : 63x85 mm. or 2.5x3.3 inch.
-Power supply : 12 Vdc.
-Display used : Ultra-bright LEDs.
-Consist : 5 LED’s per segment and a LED’s for the decimal point (p).
-At 12Vdc. A segment current ~ 15 mA.
15mA.
»A decimal point (p) current ~
Total current ~ 120mA.
Fully Assembled and Tested

Application:
- Connect the seven segment driver to the display at the copper-side of printed
circuit board and you can select the common cathode and the common anode
for using the display.
