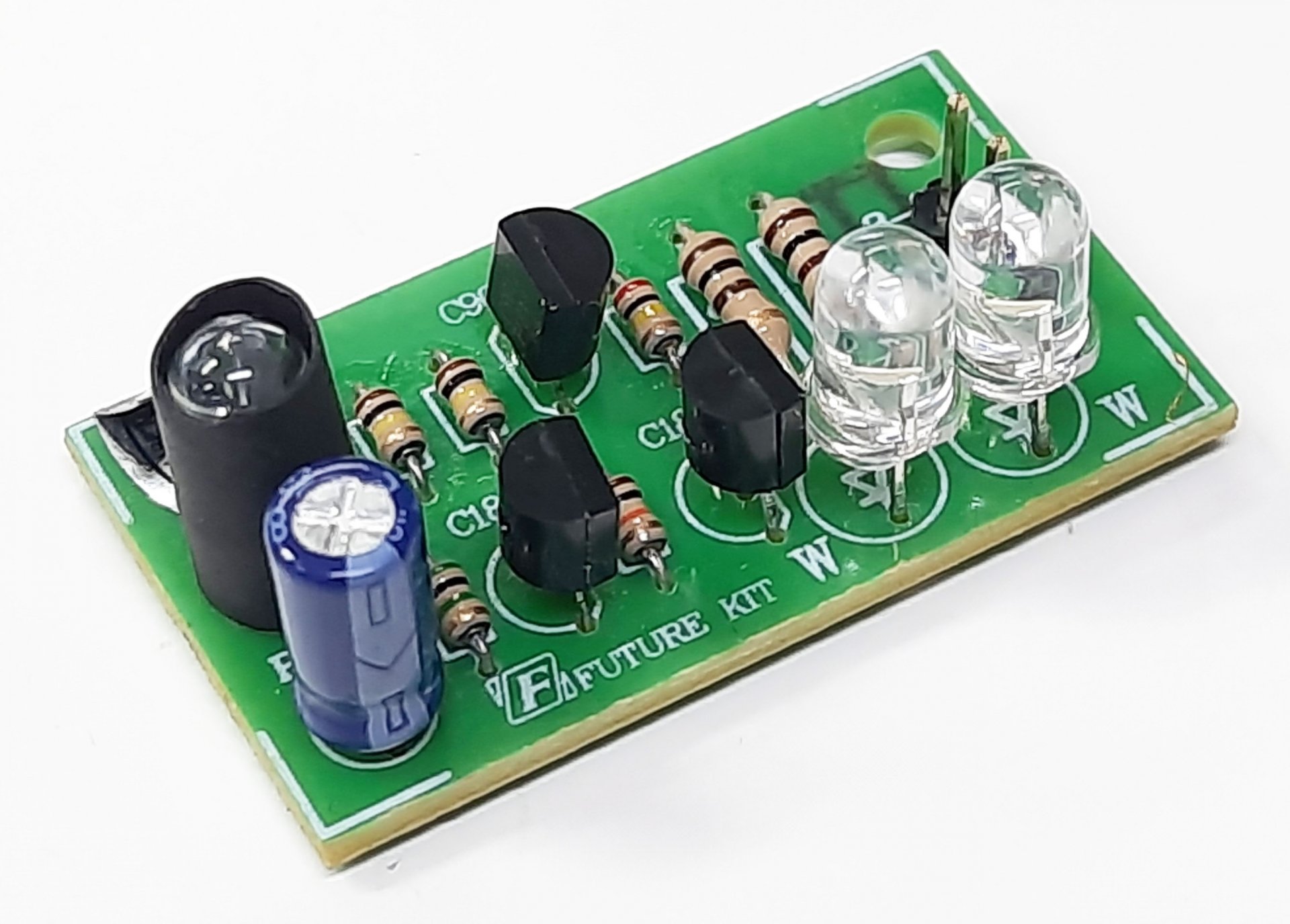

This circuit is a small light circuit that can be installed in dark places to indicate obstacles or
make a guide line in the corridor. The operation of the circuit will work automatically when it is
dark. Suitable for installation in energy-saving house model or point Tell locations such as
light switches or outlets, etc.

Technical data
- Power supply : 3-5VDC.
- Current consumption (Standby) : 20uA @ 3VDC
- Current consumption (Working) : 6mA @ 3VDC
- Uses 2 white LEDs as navigation lights.
- PCB dimension : 1.45 in. x 0.79 in.
- Uses a Photo Transistor to sense light level

Note: Other LEDs can be used with this kit, but if ordering the FA1906, it comes with the White LEDs installed only. If you purchase it as a kit you can purchase other color and size LEDs.
