6 Player Quiz Show Buzzer circuit
Item #:
FK191
Price/ea:
$7.99
Assembly Options
Options
Quantity:
Your Price:
$7.99
Details

Description

6 Player Quiz Show Buzzer circuit

     This is an easily assembled circuit that allows up to 6 players to "buzz" in by pressing their switch. The other players will be locked out from "buzzing in" after the first player. Each player has their own LED on the board to indicate who pressed thier button first. The switches may be mounted remotely to allow for the use of handheld or podium style buttons. Master on/off power reset switch can also be remote mounted if desired. Great for mock game shows, or as a reaction game to test your friends! Suitable for 2-6 players.

This kit requires soldering to assemble circuit board and components to make finshed item shown in picture. A 15-30 Watt soldering iron is recommended.

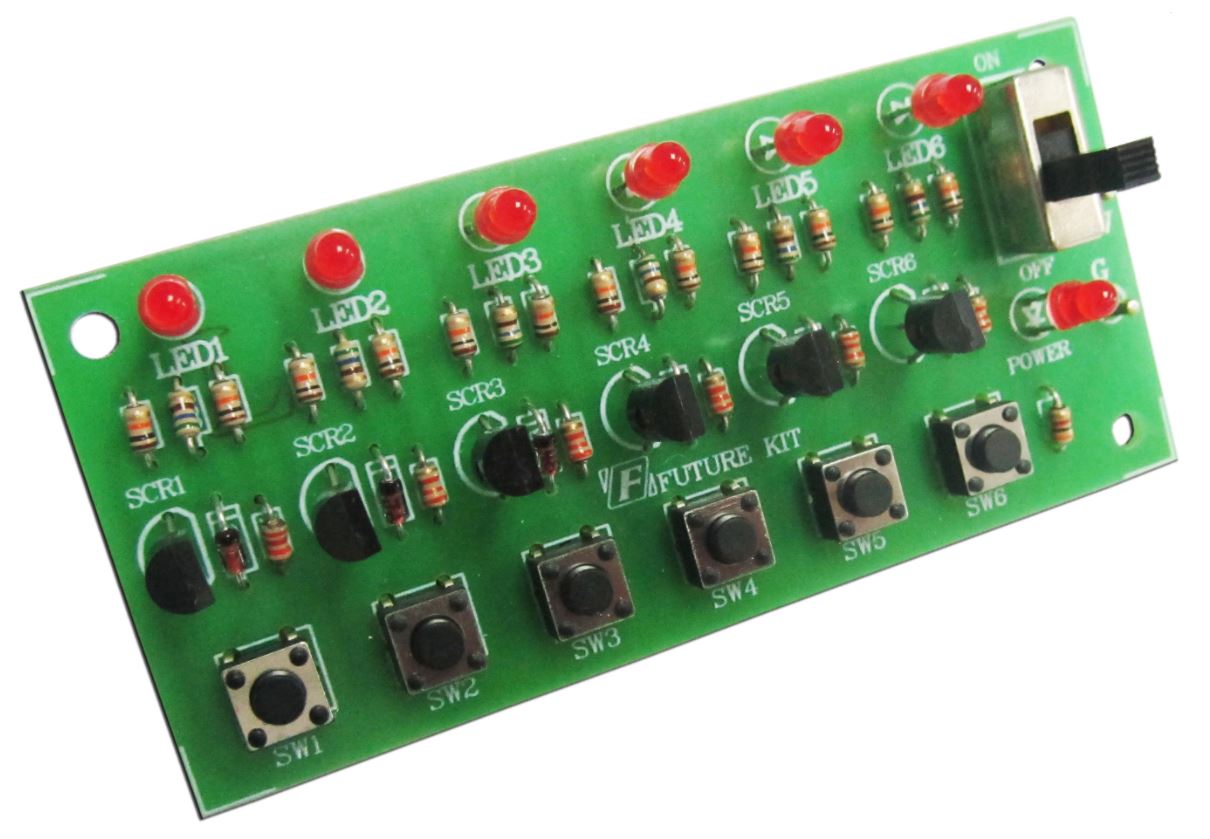

The unit can also be purchased Factory Assembled (as an option as shown in item picture) with all LEDs, buttons and reset power switch soldered to the circuit board.

Product Specifications

PCB dimensions

3.19 in. x 1.44 in

Power Supply

9-12VDC (not included with kit)

Current Consumption

25mA (max.)
