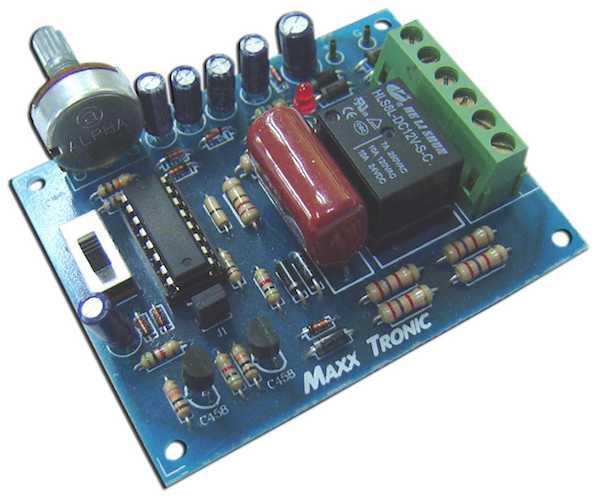

Description
This circuit has an LED indicator with a delay switch for turning off a high voltage device (110 or 220V applications). The delay may be adjusted from 1 minute to a maximum of 180 minutes. Applications of this circuit include turning off fans, ventilators, lights or pumps. Useful for turning off a device when you cannot be there to turn it off manually.
Product Specifications
|
Mains voltage |
220-240 VAC |
|
Max. load |
1A. or 200W. |
|
Delay time |
adjustable from 0.5 seconds to 180 minutes |
|
PCB dimension |
2.99"x2.36" |
|
2 modes of operations |
1. delayed off when switch is turned ON |
|

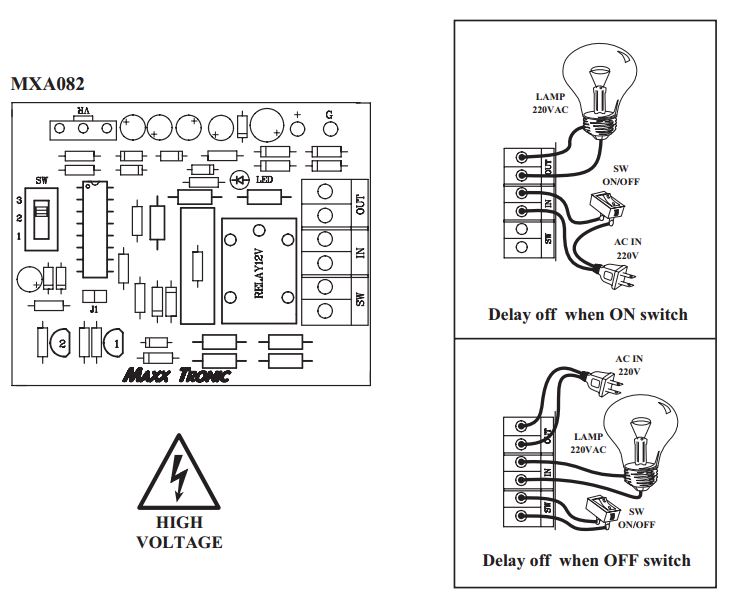

2. delayed off when switch is turned OFF (see diagram for wiring information) |
