Mini Organ (13 Tones)
Item #:
Assembly Option
Your Price:

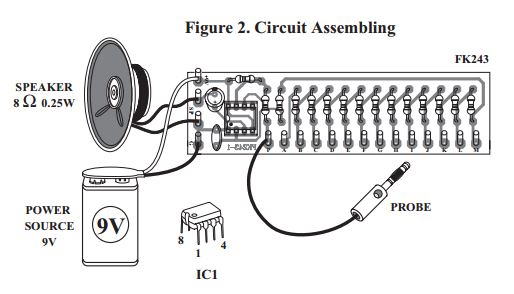

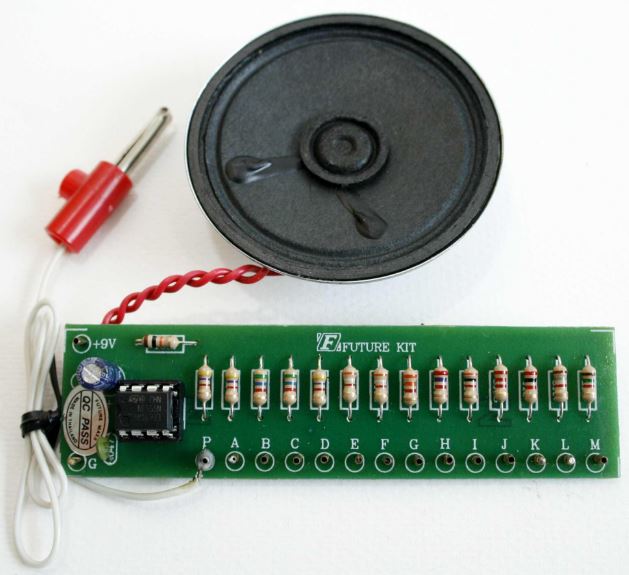

This mini organ circuit generates 13 different tones by touching the conductive electrodes (A-M) with the metal probe. Conductive electrode “A” generates the lowest frequency, while conductive electrode “M” generates the highest frequency. This is possible by using a LM55 timer as both the tone generator and audio driver. The kit is supplied with an 8 Ohm 0.25W speaker.



Product Specifications

Power supply

9VDC @ 75mA max. (operational), 5mA (stand by)

PCB dimensions

3.72" x 1.04" x 0.6" (approx  95mm x 26mm x 15mm)
