Description

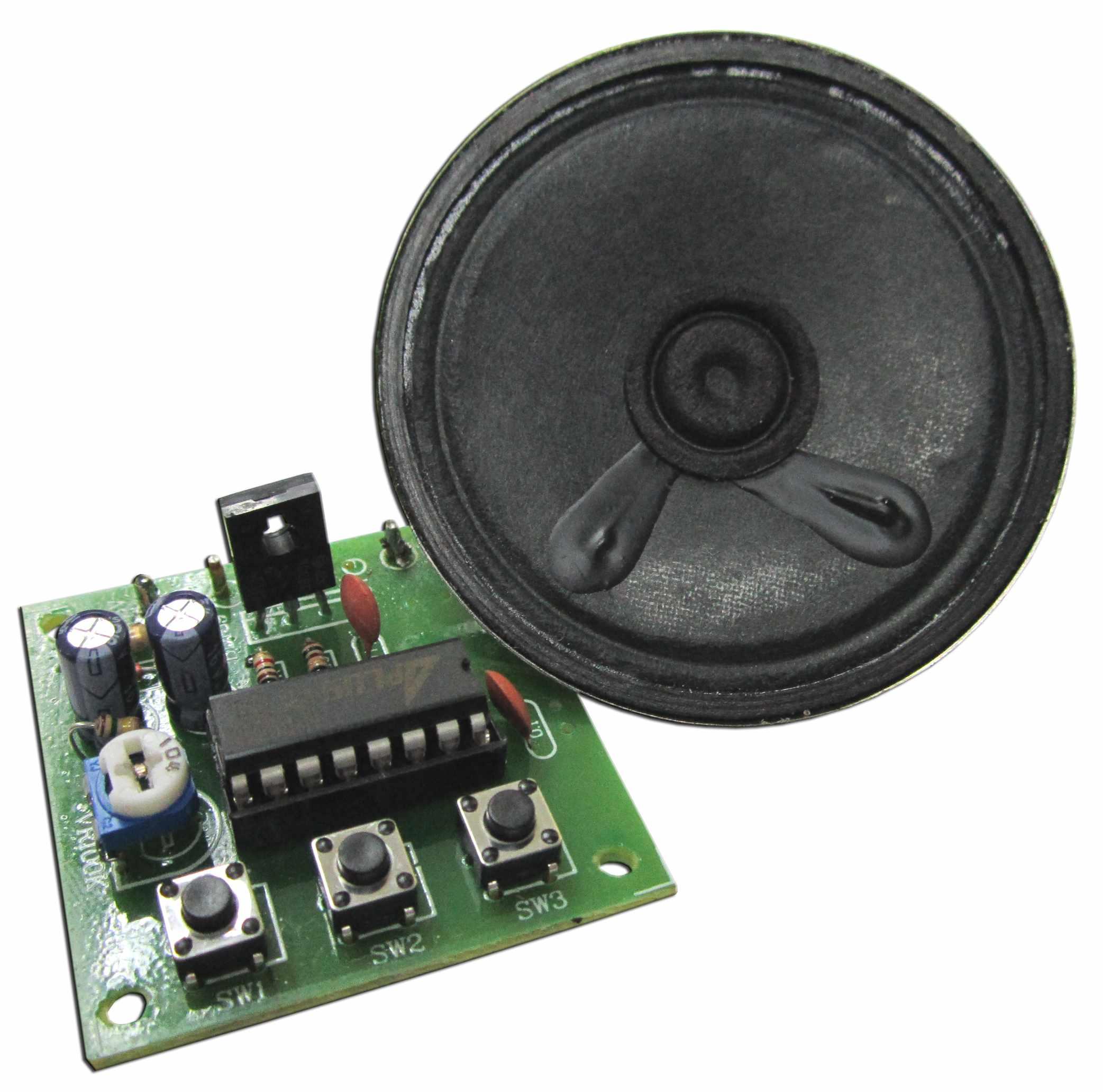

The circuit has three bell tones that play when the corresponding button is pushed. Each button plays one of bell tones. It is useful for toys or other audio circuit designs. The FK1301 Power Amplifier kit may be used for amplifying the sound.
Product Specifications
|
Power supply |
3-6VDC. |
|
Consumption |
18mA. (standby), 280mA.(working) @ 4.5VDC. |
|
PCB dimensions |
1.57” x 2.19” (approx. 40mm x 56mm) |
