9" Seven Segment Display (Ultra-Bright LEDs) MXA004
Item #:
MX004 SO
Details

Description

Special Order, email contact us for current price and delivery

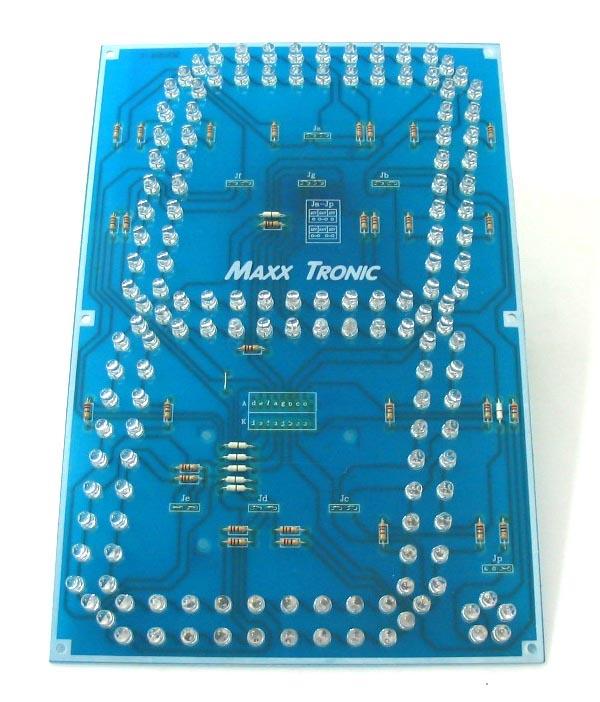

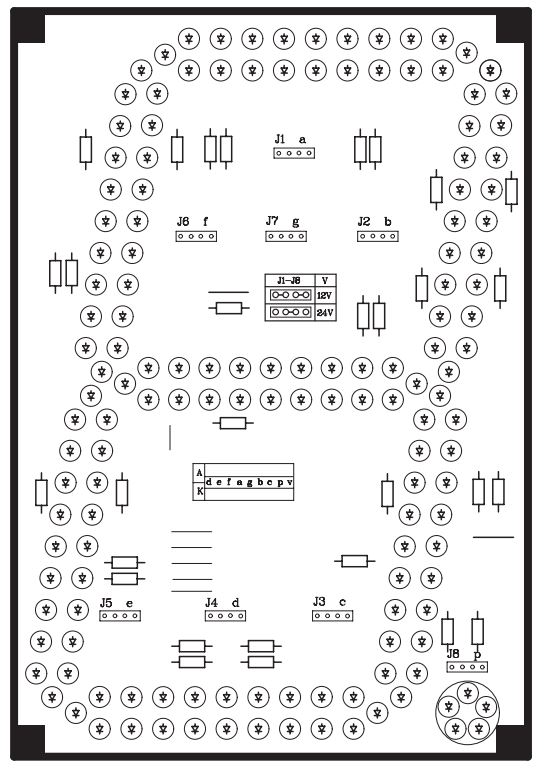

This seven segment display is 9” tall featuring ultra-bright red LEDs. This panel can be viewed from over 100m away in broad daylight making it suitable for score boards, event timers, counters and retail pricing systems. A jumper on the board allows for 12V or 24V operation. There are 20 LEDs per segment and 5 LEDs for the decimal point. The board is compatible with many of our MAxxtronic driver modules that can count, display times, or display temperature.





Product Specifications

Digit size

5.8" x 9" (approx. 147mm x 230mm)

Drive current at 12V

60 mA per segment, Decimal Point 15 mA.

Total load at 12V

435 mA

Drive current at 24V

30 mA per segment, Decimal Point 15 mA

Total load at 24V

225 mA

PCB dimensions

6.4” x 9.5” (approx. 162mm x 241mm)
