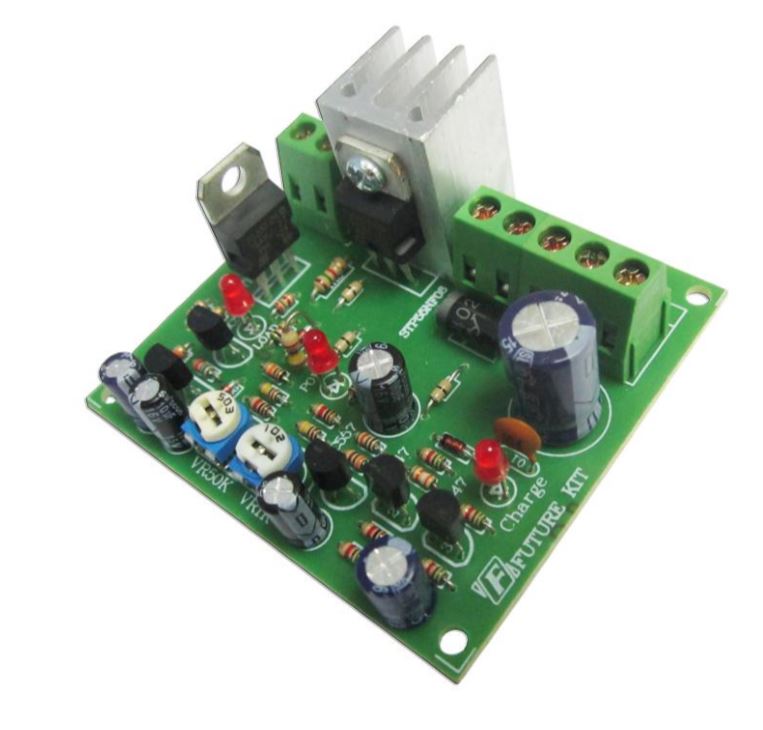

Solar Charge Controller 5-30W
Item #:
Assembly Option
Your Price:


Available assembled only at this time!

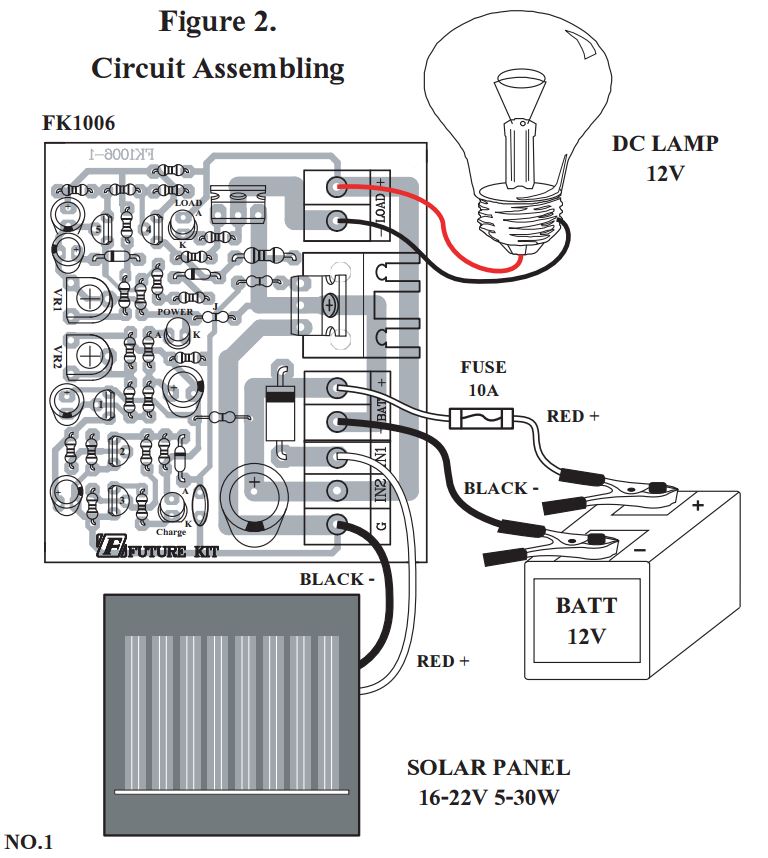

This solar charge controller regulates the voltage and current coming from the solar panels (16-22V. 5-30 Watts) going to the battery. It maintains peak battery power and protects the battery from being overcharged and over-discharged to increase battery service life by cutting offing when battery voltage is less than 10V and reconnecting when the voltage rises up to 12V. Three status LEDs indicate Power, Load and Charge operations. Uses for this kit include DC electrical appliances such as bulbs, radios, fans, etc. where there is not access by electricity or need for energy conservation.



Product Specifications


12V 7 Amps

Solar panel required

16-22V. 5-30 Watts.

Max. working current

1.6 Amps @ 18V

Max. load current

5 Amps

PCB dimension

2.50” x 2.67”

Terminal ports

2 (one port has diode protection)
