FA432 Circulator On/Off Switch 0-180 Min, Factory Assembled

The on & off times of the FA432 recycling timer can be indepently set over the range of 1 to 180 minutes. The timers once set will time out and then repeat the cycle. Aplications include industrial process control, lighting, darkroom timing.

Power supply required 12 VDC @ 45ma

Relay load 10 Amp @ 110 VAC, 5 Amp @ 220 VAC, Can also be used for DC low voltage.

Timer Ranges 1-180 minutes (Can be changed to time shorter duration by changing Jumpers on circuit board)

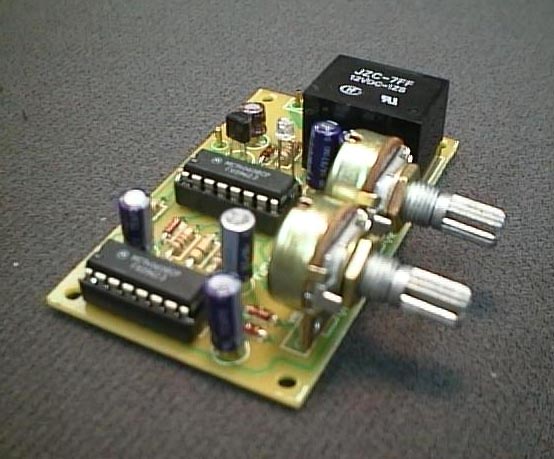

Circuit board 3.01" x 1.87" x .8" High
