BK116 Chaser Kit, 16 LEDs
Item Details
BK116 Chaser Kit, 16 LEDs
Item Name:
BK116 Chaser Kit, 16 LEDs
Item #:
BK-116
Stock Location
Isle 3-1U
Price/ea:
$15.99  $13.99
$0.00 (0 - 0)

Product Image Gallery:



16 LED Chaser Module

Kit makes 16 LEDs that chase in multiple sequences and at adjustable speeds

The Ghost Buster'sTM Proton PakTM type Sequence is now available as an option:


The sequence looks like a VU meter and turns multiple LEDs on at a time.  1 to 16 LEDs will be lit at the same time and go up and down to simulate the Blue LED Lights in the Ghost Buster'sTM Proton PakTM. The option is a special chip programmed with the special sequence in it. If you already have the standard BK-116, the chip can be replaced with no other modifications required. Video of optional sequence with 5mm Blue LEDs at  http://www.youtube.com/watch?v=t9m_- rvF61w Now also added an additional sequence to stack up from 1-16 and repeat. Also added adjustable speed to the sequence.

Kit requires assembly, but can be purchased assembled and tested as an option.

Note: The pattern and speed settings are retained in the chip memory when the unit is shut off, so it will start back in the same speed and pattern when the unit is turned back on!

Sixteen LEDs chase in multiple programmed sequences. Sequence #1 Straight chasing LEDs 1 though 16 and repeat. Sequence #2 Bi Directional Chasing LEDs 1 to 16 then LEDs 16 to 1 then repeat. Sequence #3 Random caotic looking pattern of individual LEDs flashing in no particular order. Speed and program sequences are selectable by the user with a simple button pushes.

See Demo Video of standard BK116 patterns on Youtube at:

http://www.youtube.com/watch?v=o46Xoq- 3Is8

New Proton PackTM Sequence video

http://www.youtube.com/watch?v=t9m_- rvF61w

Module:
-
16 LED outputs.
- Micro-proccessor controlled circuit with preprogrammed sequences.
- Voltage regulator on circuit board to enable voltages from 6 to 14 VDC to be used

- Adjustable cycle time from a very slow chase to almost a blurr
- Complete with 16 Standard 5mm Red LEDs (other LED colors and sizes available as options)
-

Power supply Required:
- 6 to 14 volts DC required operate the circuit. The DC accessory output on most power packs will work. A 9 volt battery will all work and last for up to 16 hours of continuous use.

LEDs:
-16 Sixteen 5mm Standard Red LEDs. Circuit will work with 3mm or 5mm LEDs of any color.

Circuit Board:

- 16  spaces for up to 5mm LEDs
- Circuit board measures 1" wide x 4 1/16" long approx 1/2" high with LEDs on board.
- LED section of the circuit board can be separated from control section to allow remote mounting of the LED bar. Only 5 wires from the control board to the LED bar are require to remote mount the LEDs. Circuit board includes two sets of five predrilled holes for easy remote wiring.

Included in Kit
The BK116 Kit comes with the circuit board, all components, 16 Red 5mm Standard LEDs, PreProgrammed Micro Chip and complete instructions. Assembly is required unless Assembled & Tested option is selected. Assembly requires a small 15 to 25 watt soldering iron and small dia solder suitable for electronic circuits. Basic soldering skills are required. See photo of parts below.

Options available:

- Assembled & Tested
- Power Supply for 120-220 volt AC operation.
- Additional LEDs in 3mm & 5mm and different colors
- Custom Programming
- Control Board and LED board separated for remote use of the LED bar.
-Ghostbusters sequence chip & 16 Blue LEDs. (4" x 1" circuit board)
-Ghostbusters sequence chip & 12 LED Board with 5mm Blue LEDs for smaller packs. (3" x 1" circuit board)

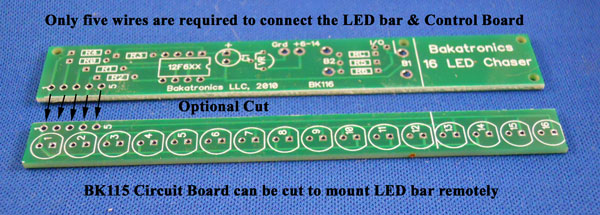

Circuit board can also be cut into two pieces, one being the LED bar and the other the control board. If board is cut, 5 small diameter wires will be needed to connect the boards and chase the LEDs. If board is not cut, no wires are required. LED bar can be remotely located 5 or more feet from the control board using 22-24 gauge telephone type wire.

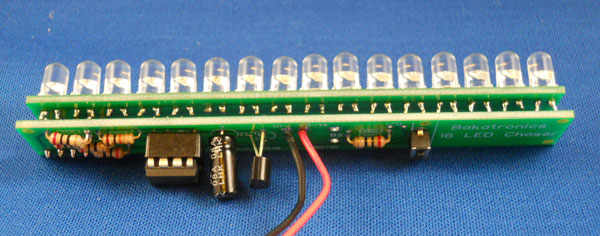

The LED Bar can also be mounted on the bottom of the control board resulting in an assembly that is 5/8" wide by 4" Long and approximately 1" thick. Using two of these assemblies, they could make excellent chasing turn signals on a car truck or trailer. See the following photo example.

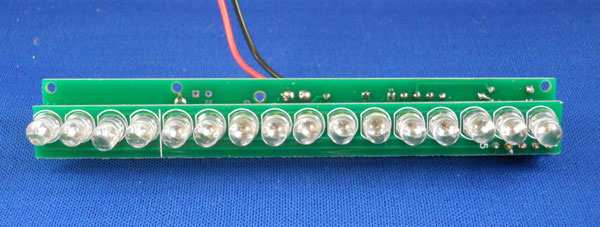

Front LEDs

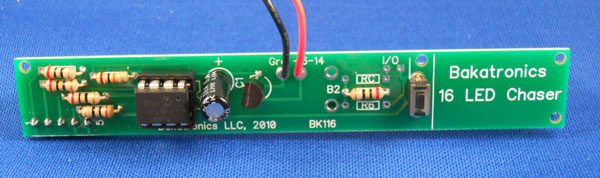

Back with Components


 Side View



Item Options
Customize your BK-116
BK-116 Standard with 5mm Red LEDs
Ghost Busters Sequence & 5mm Blue LEDs (16) (Add $4.99)
Ghost Busters 12 LED Sequence & 5mm Blue LEDs (12) (Add $3.99)
Options
9 Volt Battery Clip (Add $0.99)
On off Slide Switch (Add $0.99)
3mm White LEDs (Add $8.00)
5mm White LEDs (Add $8.00)
5mm Warm White LEDs (Add $12.00)
3mm Blue LEDs (Add $7.20)
5mm Blue LEDs (Add $7.20)
3mm Amber LEDs (Add $7.20)
5mm Amber LEDs (Add $7.20)
3mm Green LEDs (Add $7.20)
5mm Green LEDs (Add $7.20)
5mm Super Bright Red LEDs (Add $7.20)
Pre-Separated Control & LED bars(6 cond wire req)) (Add $2.95)
Power Supply for 120 Volts AC (Add $6.95)
LEDs wired to 18" Leads (Add $48.00)
LEDs wired to 48" Leads (Add $54.00)
5' of 6 conductor wire cable for remote hook up (Add $1.99)
Assembled & Tested (Add $12.95)
Slow speed VU Program Change (Add $10.00)
Program to trigger 1-16 & wait for next trigger (Add $10.00)
Item Price
Your Price:
$13.99
Quantity:


16 LED chaser kit. This kits makes 16 LEDs Chase in multiple
sequences. Click more info for complete details. Kit
requires
assembly, but can be purchased assembled and tested as an
option.
