BK-103 Simulated Airport Beacon Kit
Item #:
BK-103
Price/ea:
$19.99
Assembly Options
Optional Items
Quantity:
Your Price:
$19.99
Details

Airport Beacon Kit with simulated rotation of White and Green Search Lights.

Micro processor controlled special effects to simulate the White / Green rotating Airport Beacon. When power is applied the micro controller starts a sequence that slowly increases the brightness of a Super Bright 3mm White LED. The slow increase simulates the light beam rotating toward the viewer. The micro processor then flashes the White LED to simulate the light being directly in your line of site, then slowly decrease the brightness to simulate the light beam going away from the viewer. When the White LED is completely off, the same sequence takes place with the Green LED. The white LED is clear in the off state, so by positioning the Green LED directly under the White LED, the White and Green Lights seem to eminate from the same point.

Kit requires assembly, but can be purchased assembled and tested as an option.

See video at http://youtu.be/lTMh62EbJ- k  http://www.youtube.com/watch?v=lTMh62EbJ-k

Features:

Small Compact Circuit
MicroComputer IC controlled with Airport Beacon program Installed
Simulated White/ Green Beacon Rotation.
IC can be reprogrammed or changed to run additional programs
High Quality Circuit Board
Voltage Regulator include in circuit
IC Socket to easily change MicroComputer Chip
12" Leads for LEDs and Power Input
Reverse Polarity Protected Circuit
Circuit is expandable as new options become available
Custom Programs can be added
White & Green 3mm Super Bright LEDs included

Options:

Assembly by Bakatronics
Strobing white 3mm LEDs (2) to mark the end of the runway.
      The Strobing LEDs will be added to two of the extra outputs
       on the BK-103 circuit board.
Light Sensor to turn on Beacon & Strobes (if installed) at dusk or when lights are
      dimmed to simulate night time.
5mm White LED
Custom rotating rates & Flashing Sequences
Other Color LEDs
9 Volt Battery Clip
On Off Switch
N Scale Airport Lighting and Runway Kits
BT- 100 Tower Kit (See how it is made) http://www.youtube.com/watch?v=TnJDvAtjiEw

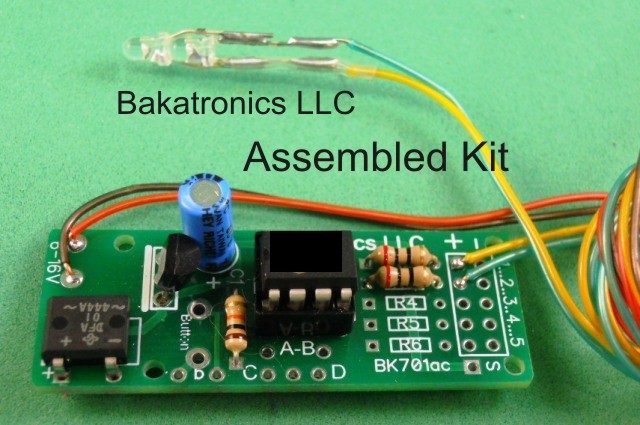

The completed circuit board is 3/4" wide, 2" long and about 1/2" high.

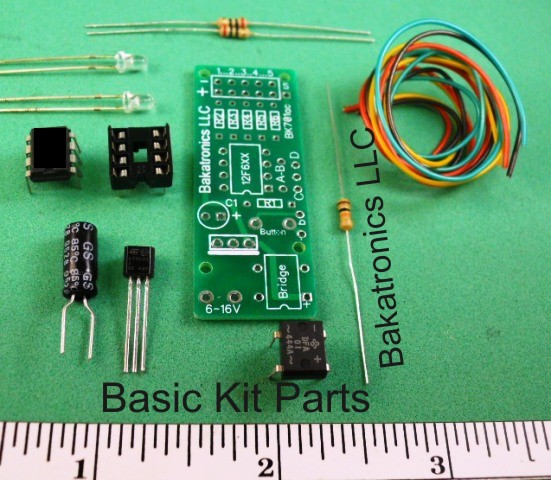

The kit comes complete with Circuit Board, Components, 2 Super Bright  3mm LEDs (1 white, 1 green) a Pre-Programmed MicroController IC, 12" LED and Power leads and Assembly Instructions. This kit requires soldering to assemble the kit. A 15-30 watt soldering iron is recommended.

 Optioal BT-100 Tower
Kit

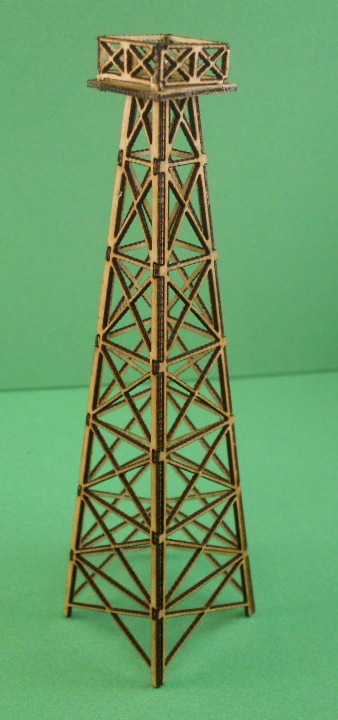

Optional BT-100 Tower Kit, Laser Cut wood requires assembly & painting

Optional Tower with
Control Shack

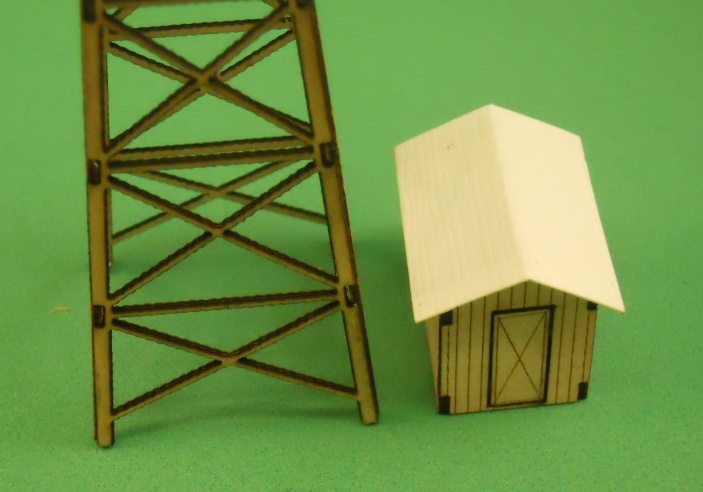

Tower shown with optional Control Shack

https://www.youtube.com/watch?v=JeFkm8kCiiw
