Lighthouse Beacon Flasher Kit (requires assembly) with Simulated Rotation
(to see a video clip, scroll down)
Effective 10/27/2013 all BK-100 kits and
assembled units will have an adjustable cycle time from approx 4 to 12 seconds supplied as
standard at no additional charge! The unit will remember the cycle setting when shut off and
restart in the same cycle speed. The cycle is adjusted by a simple button
Here is a great kit to bring a lighthouse or other rotating style beacon to life! The
kit includes a preprogrammed MicroComputer that slowly increases the bightness of a
3mm Super Bright White LED to simulated a light beam slowly swinging toward you. The
MicroComputer then produces a bright flash in the LED to simulate the light beam directly shining
in your direction. Then the MicroController decreases the intensity to simulate the light beam

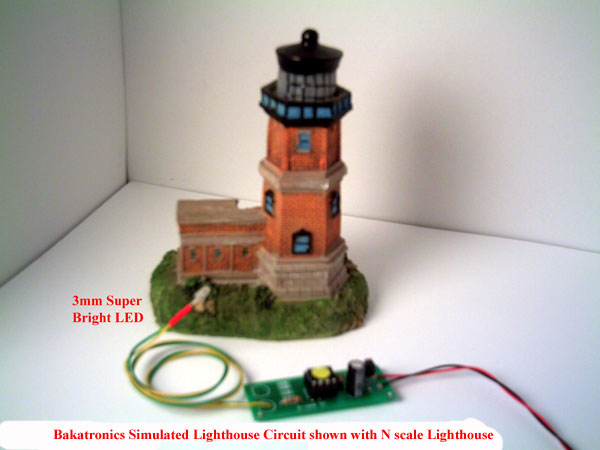

moving away from you. The cycle then repeats over and over again. Great for HO and N Scale
Lighthouses or Garden Lighthouse. Assembly is fairly simple due to the small number of parts.
Don't have room Lighthouse on your layout! You can always make a
backdrop showing a small Lighthouse in the distance with the LED mounted in the backdrop for a
Solar Power Option: The unit may also be combined with our FK1004 Solar Night Light kit to
charge NiCad batteries during the day and automatically turn the unit on when it gets dark. The
option comes with the FK1004 unassembled kit, a 3 AA NiCad Battery pack and instructions
for hook up to the BK-100 Lighthouse Flasher kit.
Small Compact Circuit fits inside most HO & N Scale
MicroComputer IC with Lighthouse Program Installed
IC can be
reprogrammed when updates are released or replaced to run additional programs
High Quality Circuit Board
Voltage Regulator include in circuit
IC Socket to
easily change MicroComputer Chip
12" Leads for LED and Power Input
Polarity Protected Circuit
Circuit is expandable as options become available
Custom Program edits are possible, email your request and we will evaluate.

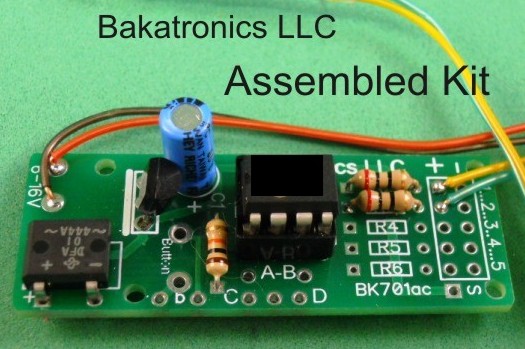

Assembly by Bakatronics
5mm White LED
10mm Super Bright White LED for O
& Larger Scale Lighthouses.
(Comes with transitor driver circuit add on
and is 10 times the brightness of the standard 3mm LED)
Solar conversion kit to charge
NiCad batteries durning the day and turn the lighthouse flasher on at night.
Other Color LEDs
9 Volt Battery Clip

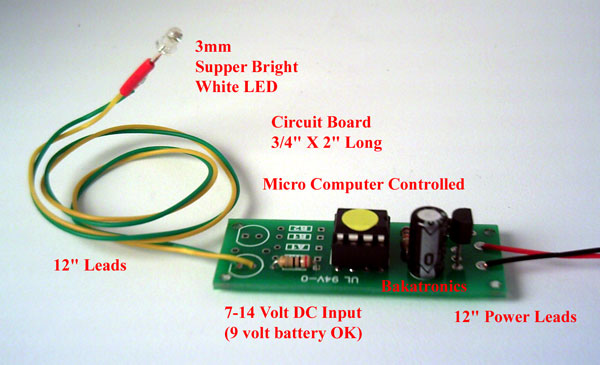

The completed circuit board is 3/4" wide, 2" long and about 1/2" high.

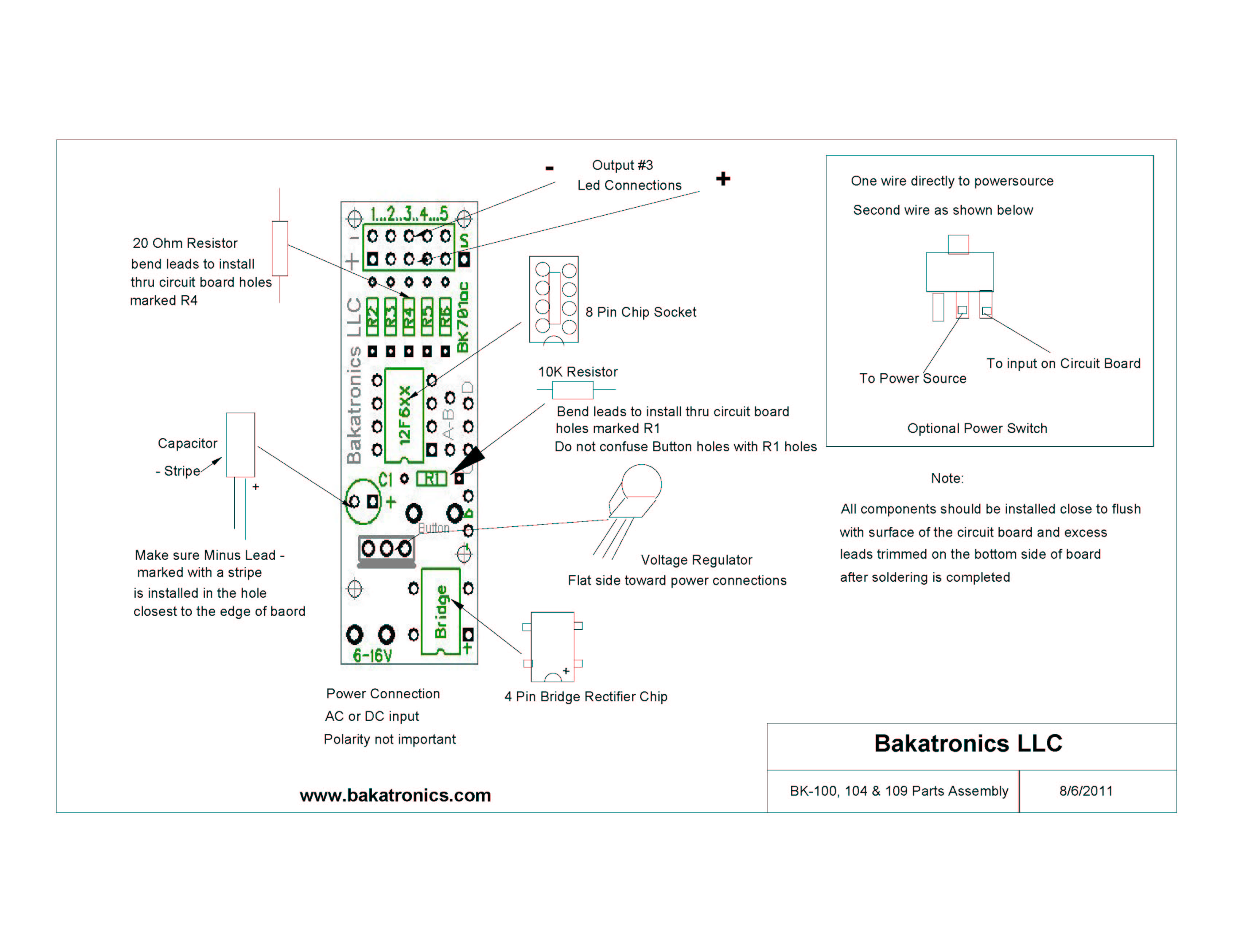

The kit comes complete with Circuit Board, Components, 1 Super Bright White LED ( approx.
16,000 mcd), a Pre-Programmed MicroController IC, 12" LED and Power leads and Assembly
Instructions. This kit requires soldering to assemble the kit. A 15-30 watt soldering iron is
Want to use a 12 volt bulb for a larger lighthouse? We now offer an add on kit with a 7
watt 12 volt garden light type bulb, driver circuit kit and instructions as an option when you
purchase this item.
Lighthouse Beacon in action! http://www.youtube.com/watch?v=77GAiAuQ12g
See it in action...
Watch Video of Lighthouse
