FK823 DC Motor Speed Control, 12-50 VDC 5amp
Item #:
FK823
Price/ea:
$17.99
Assembly Option
Available options
Quantity:
Your Price:
$22.98
Details

 K823 kit currently out of stock, please select the FA823 Assembled option

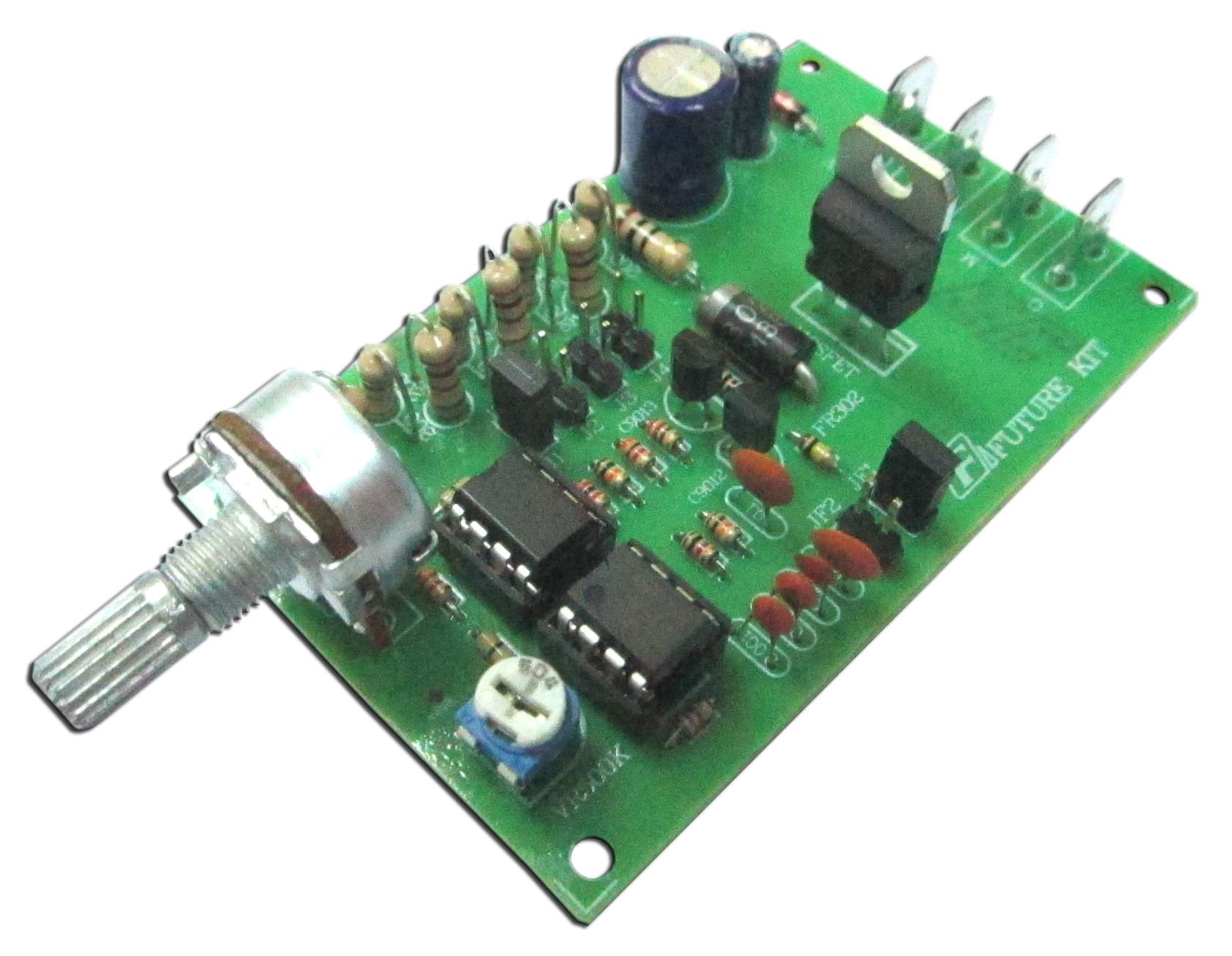

FK823 DC PWM Motor Speed control with variable Frequency. For 12- 50 Volt DC input, 5 Amp max output.


Availble as a kit or Factory Assembled

Great for hand held switching throttles

Feature:This circuit is not only the speed of the motor can becontrolled but the frequency also adjustable. (due to the use of Pulse Width Modulation)

Technical data
:Power supply : 12-50VDC. (jumper selection).Load voltage
: 12- 50VDC./
:5A. max.
:Motor speed (PWM) can be adjusted from 0% to 100%.
:Can be adjusted frequency 3 ranges:
-> from 50Hz - 1kHz.
-> from 240Hz - 13.84kHz.
-> from 1.9kHz - 100kHz

Have fun, that's what it's all about.
