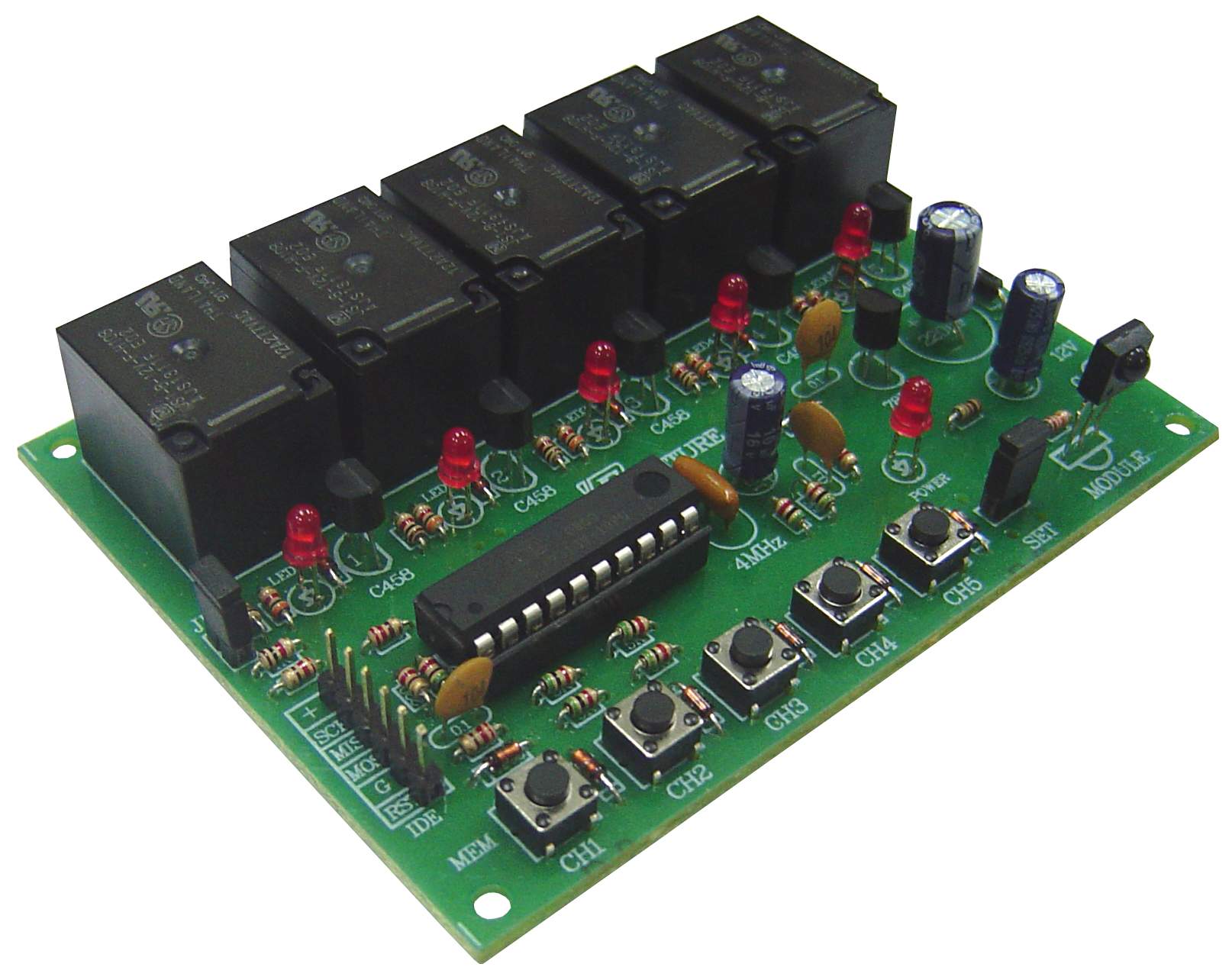

FK443 Five Channel Relay board

Relay board for use with FK440 or FK442 remotes to add additional channels

Technical Specifications:
- Power supply : 12VDC (RX)
- Consumption : max. 42mA. (RX)
- Consumption of standby : max. 9mA. (RX)
- Can set the desired button of transmitter by user.
- Can be set the operation of relay to be push-on push-off switch or push switch.
- Loading : 1A per channel.
- PCB dimensions : 3.66 X 2.88
- Note: Use only with FK440 or FK442 remotes as USA Universal Remotes codes do not work!

Options:

- Factory Assembled & Tested

 Kit requires assembly and comes complete with circuit board, components,  instructions. Requires basic soldering skills and a 15 to 30 watt soldering iron. Solder is included

Another great kit to have fun with from Bakatronics

Now Also available as a factory assembled and tested module! See options

Have fun, that's what it's all about.
