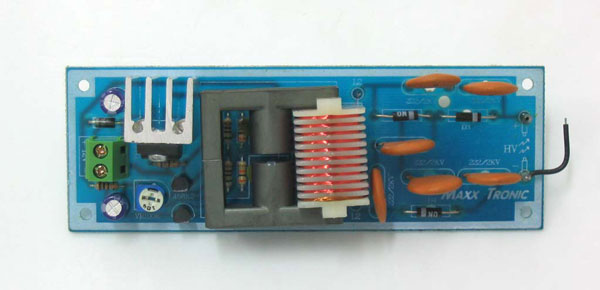

MX028: HIGH - VOLTAGE DC GENERATOR
- PCB dimension : 4.78" X 1.60"
- Recommended Housing : FB04
- Power supply : 9-15 Vdc./ max. 350 mA.
- Output-voltage at HV point : approx. 7,000-8,000 volts(no load)
connector and tunning:
- 12V point is used for connected to the power supply 12 volt.
- HV point is output of hight-voltage. When connected the power supply
to circuit, at HV point will have spark. Distance of the needle tip
is not more than 1 centimeter.
